Introduction

The MCA512 is a compact multi channel analyzer (MCA) for processing gaussian inputs

It is capable of sorting input pulses from shaping amplifiers into 512 discrete bins.

Each Bin can record up to 65535 counts before an overflow event occurs.

The unit is powered via USB , and the data can be visualized via the included Python based software.
The software also includes analytical tools to fit the data and extract parameters

*This Product is a modified version of the alpha spectrometer MCA designed by IUAC, New Delhi and released as open hardware. Build details are here

Specifications

Channels : 512                                       Maximum counts per channel : 65535
Input Pulse : 0-5 V Gaussian         Input Connector : BNC
Interface : USB
Chassis : Aluminium Shielded

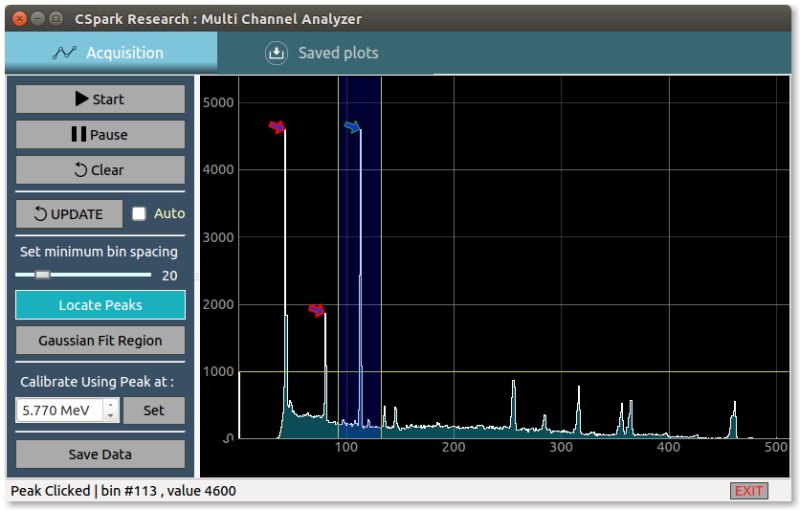

Software and sample results

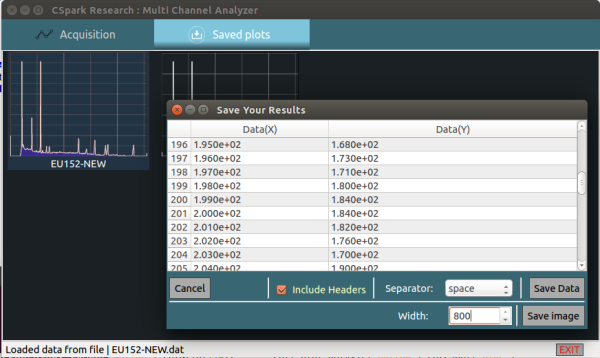

Multiple export options

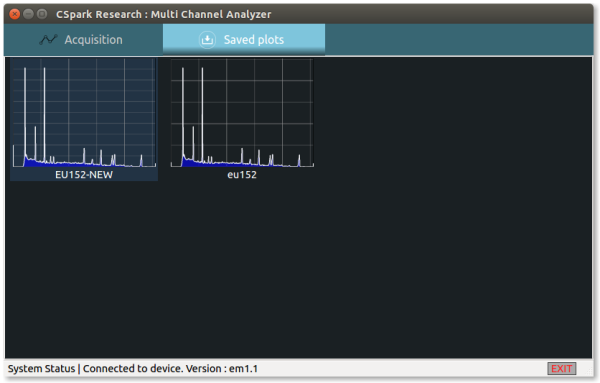

Easily select saved plots from thumbnails

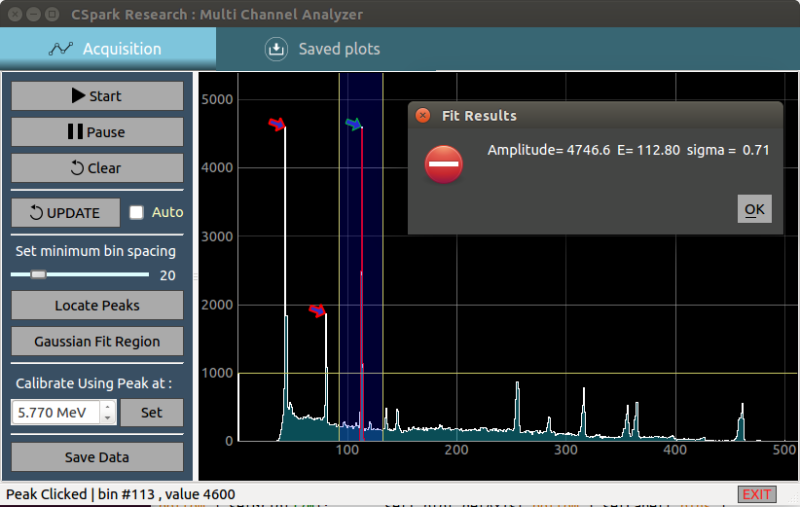

Data analysis and extraction using Python Modules
